Chat OnlineMT-602 is a new type of pick and place machine. It is widely used for the PCB and LED board in the size of 300*400mm.
Adopt two mounting head, it is easy to operate with high precision and stable.
product name auto-mounter machine
product type MT-602
mounting head double mounting head
average speed 5000CPH
positioning accuracy 0. 025mm
net weight 151kgs
applicable elements 0603-1206 SMD transistors, diodes, capacitors, resistors, chips, etc.
number of rack 56：8mm=50，12mm=4，16mm=2
Number of offline storage files 20
max size of circuit board 300mm×400mm
power supply 220V，50/60Hz，280W
vacuum gas source -50Kpa，13L/min
operating system Windows
installation dimension W×D×H 1396*761*480mm
Number of vacuum pump 2
Number of pump 1
malfunction detection
Suction leak detection, pressure detection

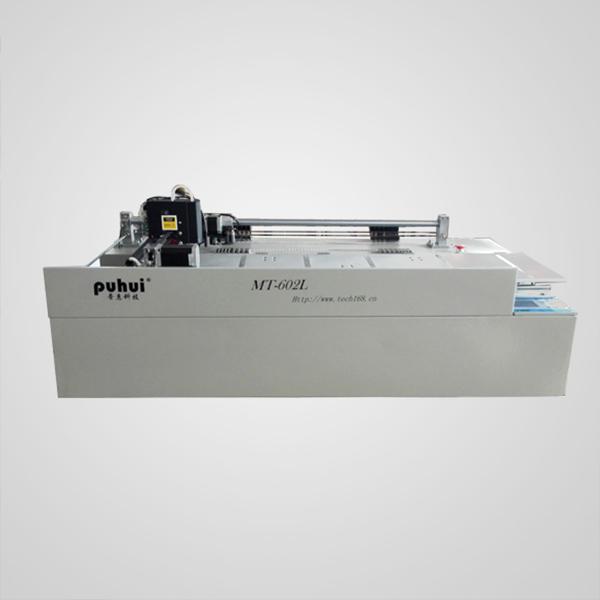

1.2M LED tuber SMT Machine MT-602L is a pick&place machine of components flexibility, PCB flexibility and production flexibility. It is equipped with cameras, 1.3m tray, 56 auto electronic feeders and 2 placement heads. MT-602L is the best choice to pick 1.2m LED tuber and the lowest cost.
2 high-precision placement heads with ±180° rotation that adopts suspended, fully symmetric and high degree of coupling way, to ensure it can mount components with higher space, more gentle and more accurate.
Auto Electronic Feeders
Adopts feeding error corrections technique to help smooth the picking and reduce the deviation.
product name auto-mounter or led pick and place machine
product type MT-602L
mounting head dual mounting head
average speed 5000CPH
positioning accuracy 0.025mm
net weight 162kg
applicable elements 0603-1206 SMD transistors, diodes, capacitors, resistors, chips, etc.
number of rack 16：8mm=8，12mm=8
Number of offline storage files 20
max size of circuit board 300mm×1240mm
power supply 220V，50/60Hz，280W
vacuum -60Kpa，8L/min
operating system Windows
installation dimension W×D×H 1396*761*480mm
Number of vacuum pump 1
Number of pump 1
malfunction detection Suction leak detection, pressure detection
