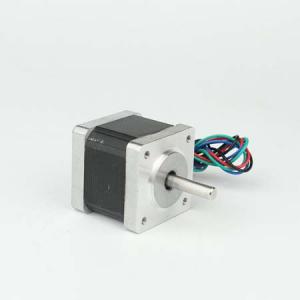

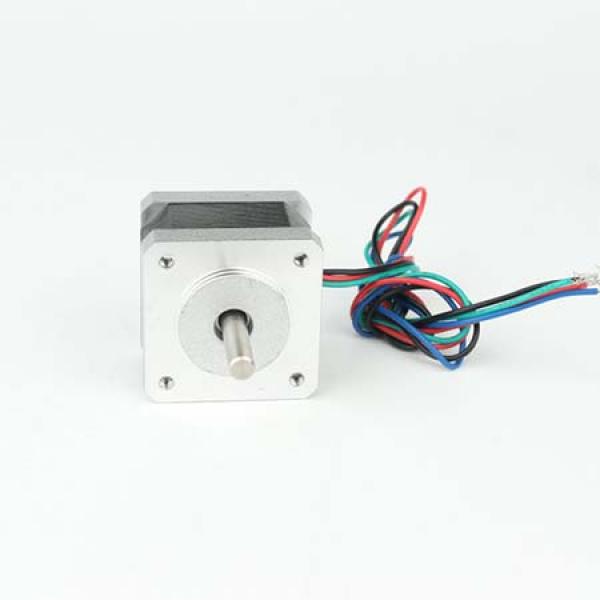

NEMA14 stepper motors 35HS28, 35HS34 or 35HS42
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:
Model: NEMA14 Stepper motor- 35HS (1.8 degree step angle)
Genaral Specification:
Step Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80°C MAX.
Ambient Temperature Range 20°C~ +50°C
Storage Temperature Range 30°C~ +60°C
Insulation Resistance 100M Ω MIN. 500V DC
Dielectric Strength 500V AC 1min
Radial Play 0.02mm MAX. (450g Load)
End Play 0.08mm MAX. (450g Load)
Max. radial force 28N
Max. axial force 10N
Single flat D shaft
1000mm long 4 lead wires with 2510 4P connector
35HS28, 35HS34 or 35HS42 stepper motors
