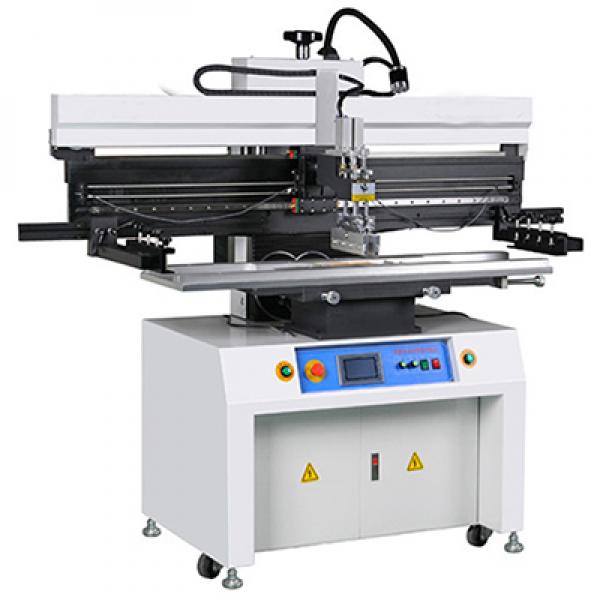

SEMI-AUTOMATIC STENCIL PRINTER
The size is suitable for led strip 1.2 meters or shorter pcb printing.
TECHNICAL PARAMETER
Printing Table Size | 320 × 1250mm |
Frame Size | 370 × 470mm, 420 × 520mm, 550 × 1350mm |
Max PCB Size | Maximum (MAX) 300 × 1200mm |
PCB Thickness | 0.2 ~ 3.0mm |
PCB Fixed Position | Screw Positioning (quick and efficient) |
Platen fine-tuning | Front / back ± 10mm Right / left ± 10mm |
Printing Accuracy | ± 0.02mm |
Machine Repeatability | ± 0.02mm |
Compressed Air | 4-6kgf / cm2 |
Power Supply | Single Phase 220V 50/60HZ 100W |

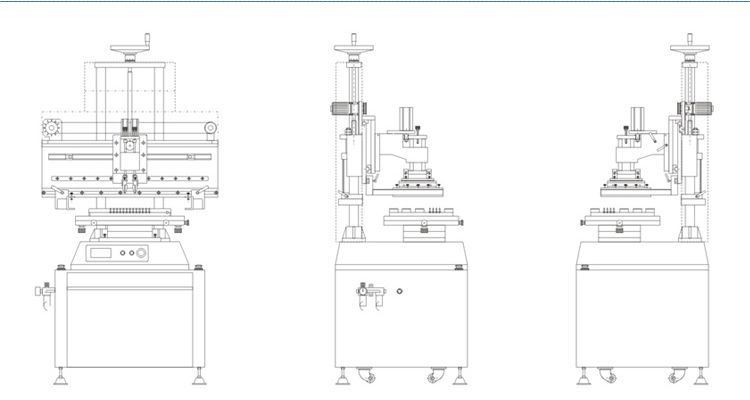

Dimensions | L1650 × W780 × H1650 ± 20mm |
Weight | Approx. 280kg |
