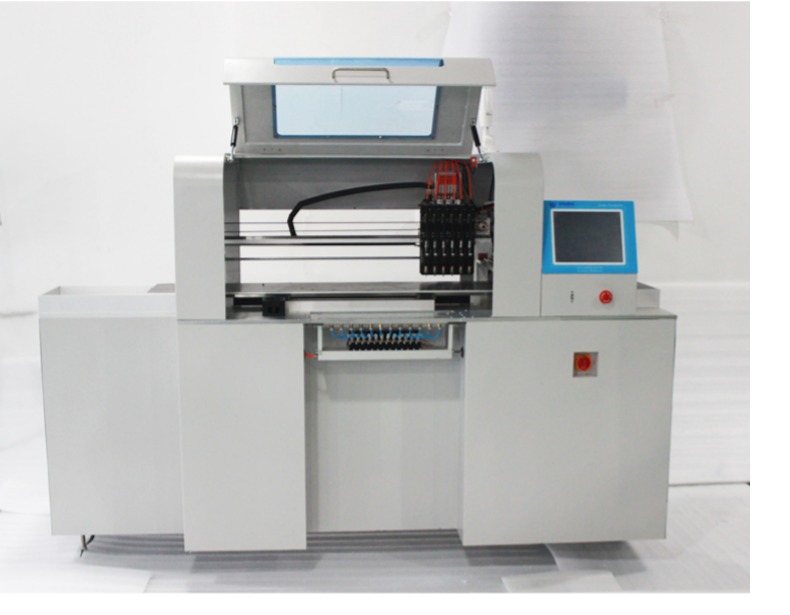

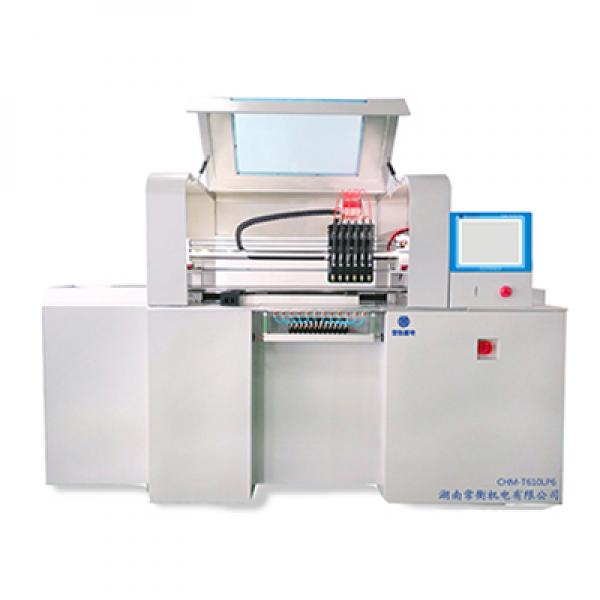

Chat OnlineHigh speed LED strip Pick and Place Machine
Part number: CHMT610LP6
XYZ Axis Stroke:680mm*400mm*20mm
PCB area:10mm*10mm-240mm*1200mm
Mount Speed: Without visual: 20000cph, with visual: 6500cph (cph is chip per hour)
EX axis stroke: 765mm

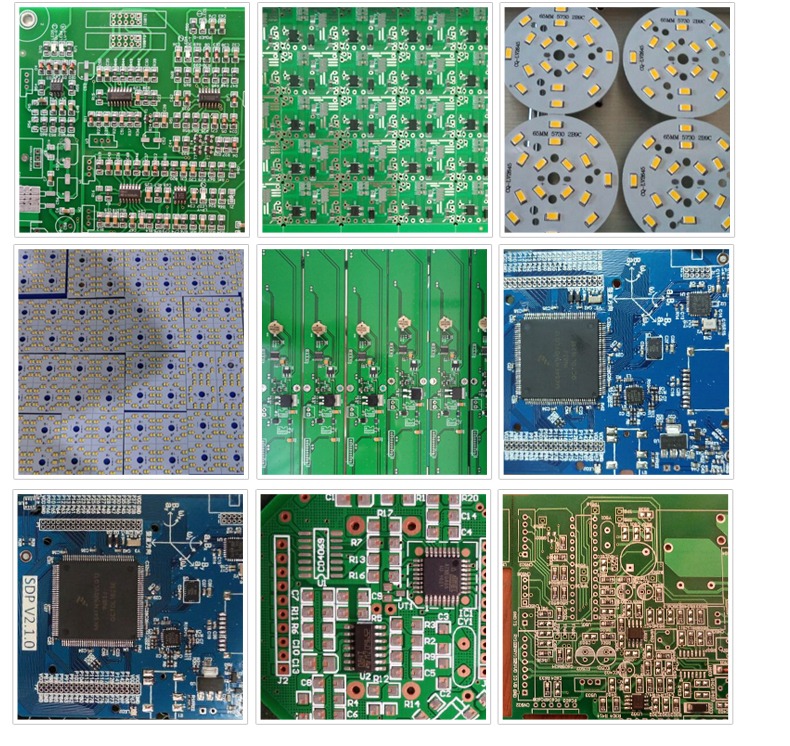

Component Support: 0402,0603-5050,SOP,QFN
Material Support: YAMAHA CL Feeder
Feeder quantity:12pcs 8mm CL8 feeders
Voltage: AC220V 50Hz/AC110V 60Hz
Dimension: L2050mm*W600mm*H800mm
Computer system: Build-in industrial PC and 10.4 inches HMI Touch Screen
Operating system: Embedded Ubuntu operating system
Power: 2kW
Air Supply: 0.5Mpa
Net Weight: 150KG
Nozzle: 6pcs pick and place nozzles
PCB Fixed Mode: Magnetic plate positioning
SMT precision: 0.025mm
Material System: 8pcs Yamaha Feeders
Controlling system: XY axis with Panasonic servo motor for driving, Z axis with reset detection, All motors with S flexibility lower or faster speed, XY axis with high quality linear guide
Compatible operation: Embedded Linux system
Vacuum type：Japan Pisco Vacuum generator
Vacuum detection 2pcs(in-built)mute type pump,(-92Kpa)
Leak detection: Vacuum detection, visual detection
Visual system: Up camera automatic adjust(max 22mm*22mm), Down camera PCB automatic MARK adjust
