MPG pendant Mach3 USB wireless with LCD display

WMPGP04
WHB04B-4
WHB04B-6
Size:
Wireless
Color:
Old version
Weight:
0.750Kgs
Size:
4 axis
Color:
New version
Weight:
1.000Kgs
Size:
6 axis
Color:
New version
Weight:
1.000Kgs

$80.00

Chat Online

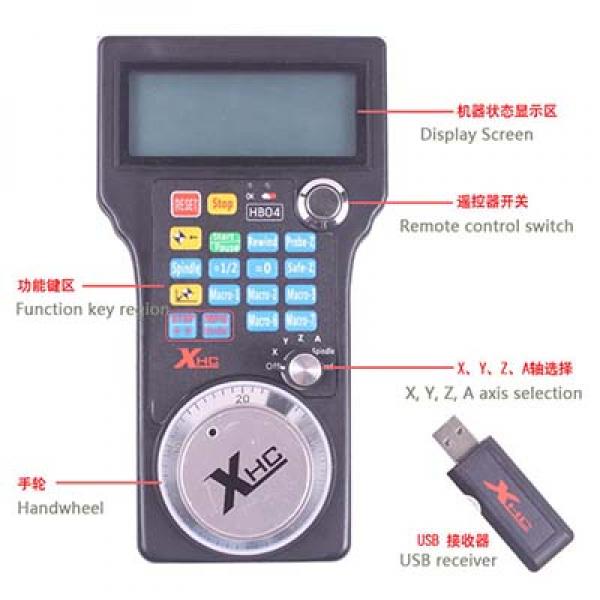

Wireless Mach3 MPG Handwheel

* wireless operation, to bring you convenience and practicality of the operation.
* 15 meter wireless transmission distance, stable and reliable data transmission
* It max support 4 axis. the 4th axis- A axis, no A=0 function ( A axis functions are not as much as the other 3 axis)
* All the buttons can be programmable
* About the hand wheel, you move slow, the machine runs slow; also you move fast, the machine runs fast.
* rich real-time display of large screen LCD:
* display include: machine status, run, pause, idle, step value
* display X y Z axis workplace coordinate and x y z axis machine coordinate
* show the feed rate spindle speed
* Band switch for easy operation:
* switching X-axis coordinate regulation
* switching y-axis coordinate regulation
* switching z-axis coordinate regulation
* switch hand wheel guide
* feed adjustment switch
* speed control switch

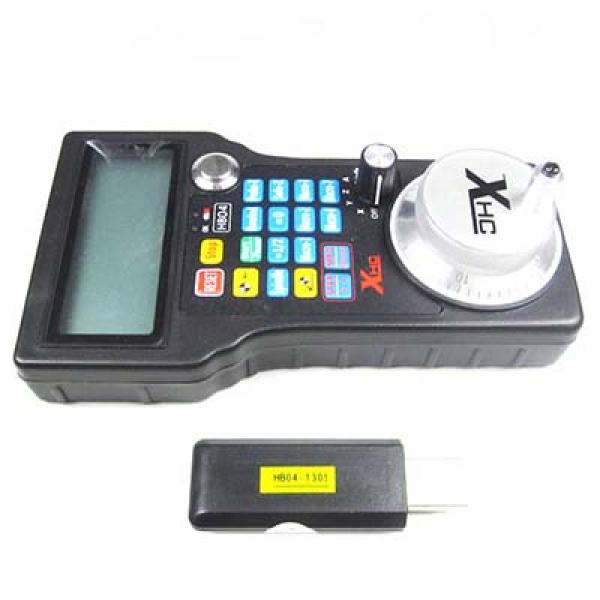

Package List:
1 x Wireless USB Receiver
1 x CNC Wireless Remote Handle
wireless mpg pendant
How to Config this wireless MPG pendant?
http://wiki.linuxcnc.org/cgi-bin/wiki.pl?Using_A_XHC-HB04_Wireless_MPG_Pendant

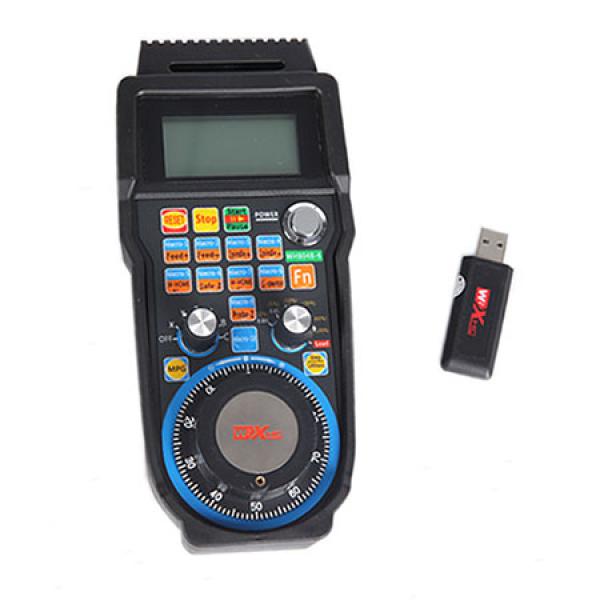

New version WHB04B has 2 series:
1、 WHB04B-4:support 4 axis with x,y,z,a
2、 WHB04B-6:support 6 axis with x,y,z,a,b,c
application on mach3 cnc system in windows platform.
Mach3 wireless handwheel
1.Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2、 LCD display
Display the X Y Z A B C axis work and machine coordinate data.
Display the spindle and feed speed.
The lcd display data with background light.
3、Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4、support 10 macro function button
Mach3 MPG

Frequency bands ISM,433MHZ
Supply voltage 2 AA batteries
Wireless transmission distance 40 meters
MPG Encoder 100PPR
Function Key 16 Keys(support 10 macro function button)
Output power 10DB
Receiver sensitivity -98DB
Support axis 4 or 6 axis
LCD Dot LCD with background light
Material The material is ABS and PC with anti-impact and heat-resistant. With protected Silicone coat
Wireless Handwheel
