2 or 3 phase NEMA23 closed-loop stepper motor

2 or 3 phase NEMA23 closed-loop stepper motor

CL57H276

CL57H2100

SS57P276

SS57P2100

CL57H355

CL57H380

CL57H3100

SS57P355

SS57P380

SS57P3100

Size:: 2P_76+22
Color:: 2N.m
Weight:: 1.200Kgs

Size:: 2P_100+22
Color:: 3N.m
Weight:: 1.700Kgs

Size:: Servo Stepper n Driver
Color:: 2 Phase 2N.m
Weight:: 1.900Kgs

Size:: Servo Stepper n Driver
Color:: 2 Phase 3N.m
Weight:: 2.400Kgs

Size:: 3P_55+22 1.2°
Color:: 1N.m
Weight:: 1.000Kgs

Size:: 3P_80+22 1.2°
Color:: 2N.m
Weight:: 1.400Kgs

Size:: 3P_100+22 1.2°
Color:: 3N.m
Weight:: 1.800Kgs

Size:: Servo Stepper n Driver
Color:: 3P_1N.m
Weight:: 1.800Kgs

Size:: Servo Stepper n Driver
Color:: 3P_2N.m
Weight:: 2.200Kgs

Size:: Servo Stepper n Driver
Color:: 3P_3N.m
Weight:: 2.600Kgs

$48.00

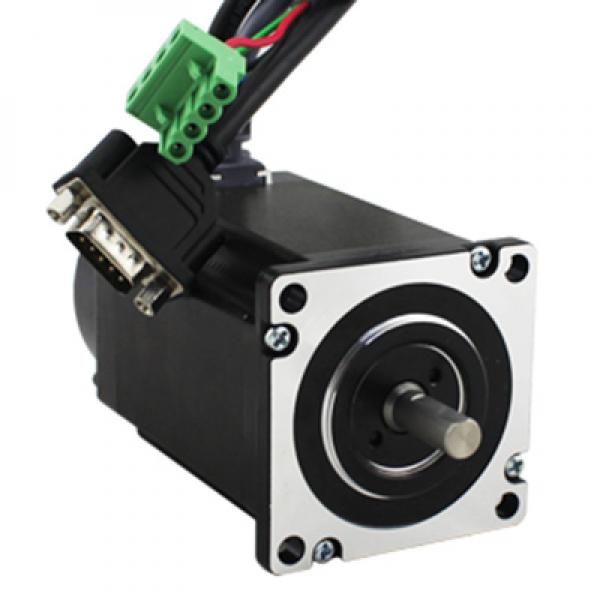

NEMA23 Servo Stepper Motor

4 lead wires two phase closed-loop stepper motor
Size NEMA23, length 76mm or 100mm plus 22mm thickness encoder
Step angle: 1.8 degree
Rated current: 3 or 4A per phase
Encoder 1000PPR
Holding torque: 2N.m or 3N.m

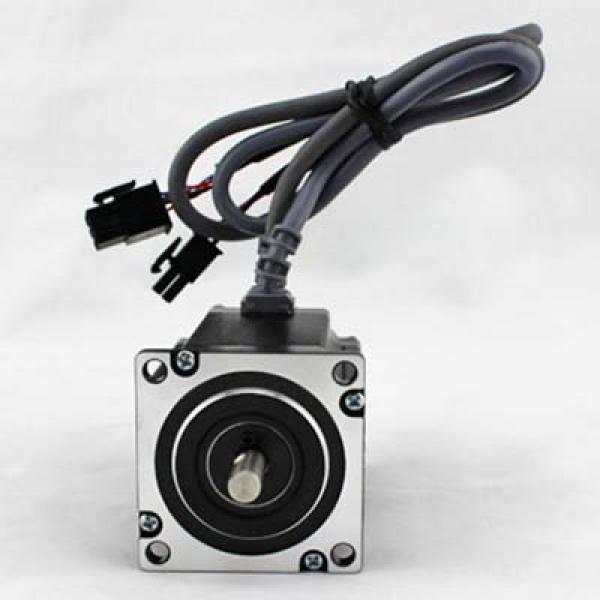

closed-loop stepper motor 23

3 lead wires three phase closed-loop stepper motor
Holding torque: 1N.m, 2N.m or 3N.m
Encoder 1000PPR
20-50VDC Power Supply
3 phase closed-loop stepper
