Best seller Pick and Place Machine can carry Electric Feeders

RDG-T4-50F
RDG-T6SG-64F
RDG-T8SG-68F
Size:
1300*1260*1300mm
Color:
SMT550
Weight:
380.000Kgs
Size:
1320*1400*1350mm
Weight:
620.000Kgs
Size:
1420*1370*1360mm
Weight:
800.000Kgs

$7900.00

Chat Online

Best Seller Pick and Place Machine

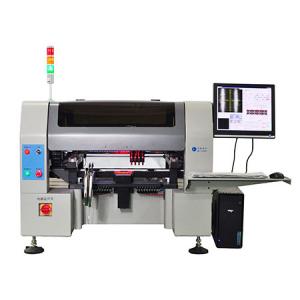

RDG-T4-50F pick and place machine (Feeder is Not included in price)
Pick and Place Machine SMT550

Pick and Place Machine Best Seller
High speed led strip Pick and Place Machine, RDG-T4-42F (SMT460), 0402, 0805, 0603, 5050, BGA LED strip production line
Range of electric feeders are available.
RobotDigg pick and place machine
HS Code 8479.89.92.00 Automated electronic component placement machines of a kind used solely or principally for the manufacture of printed circuit assemblies.
User Manual of SMT460 or RDG-T4-42F electronic feeder high speed pick and place machine


Maximum PCB circuit board area: 314mm*337mm
The maximum movement range of X and Y axes: 389mm*559mm
The maximum movement range of Z-axis: 20 mm
Maximum mounting rate: 7,000 PCS/hour
Average mounting rate: 5,000 PCS/hour
Positioning accuracy: 0.01 mm
Buffering range of suction nozzle: 5 mm
Power supply: 220V/110V, 50 Hz
Compressed air: 0.5-0.7 Mpa
Maximum power: 350 W
Belt-type feeder: 8, 12, 16, 24 mm
Visual display: 17 inches color HD display
Product weight: 265KG/400KG
Range of application: adaptive 0402, 0603, 0805, 1206, diode,triode, SOT, etc
maximum chip size: 40*40 mm
minimum pin spacing: 0.5 mm
Quantity of feeders: 42 PCS
Service motor: Panasonic servo motor
Weight 265Kgs

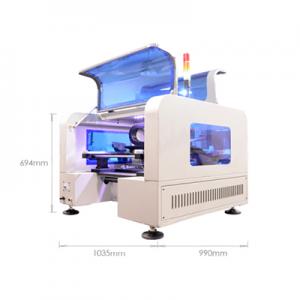

Dimension: 1035*990*694mm


Features:
1.High Precise JUKI Universal Nozzle+4 Pick and Place Head
2, Come with Computer + Monitor + Keyboard and Mouse
3,44 Motorized Electric Feeders (Support Tube +IC Tray)
4, Support a Group of IC Trays(Random combination of six different chips
5, Support Feeders With Pallet Chips
6, Imported quiet Solenoid Valve
7, Precise linear guideway frame

Pick and place machine

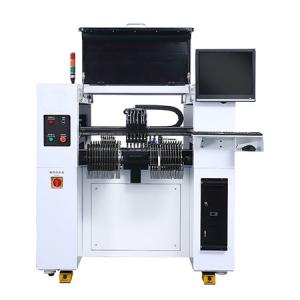

RDG-T6SG-64F 6 pick and place nozzles and 6 cameras

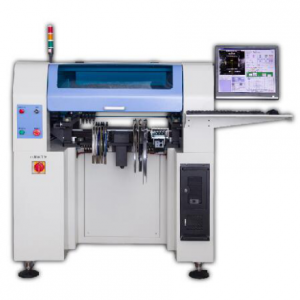

RDG-T8SG-68F 8 pick and place nozzles and 8 cameras
8 nozzle n camera pick and place machine
