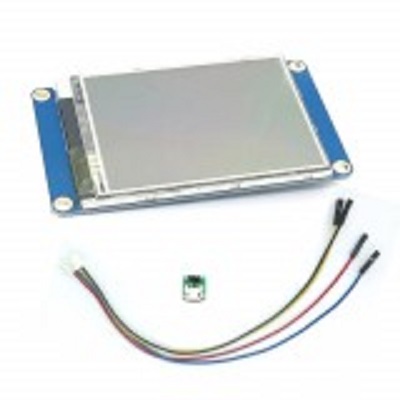

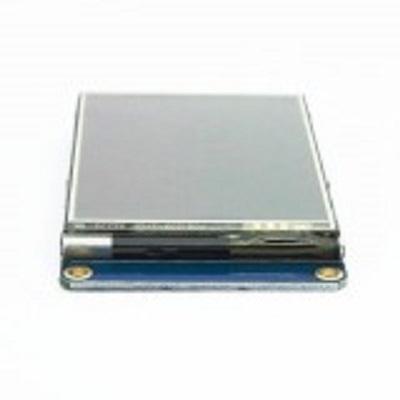

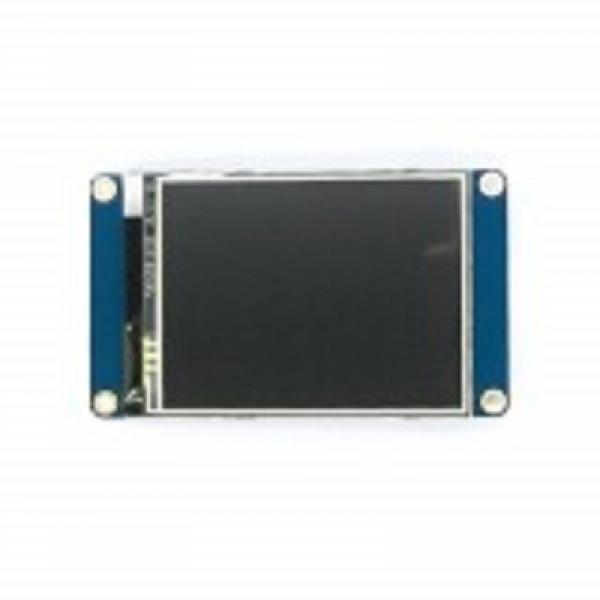

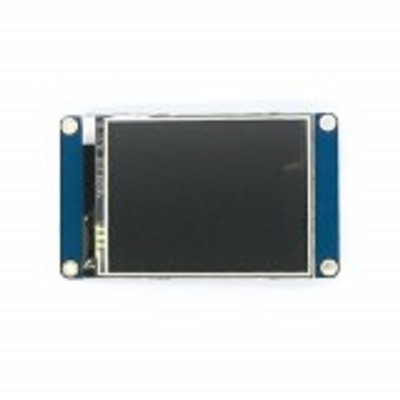

Nextion 2.4 or 2.8 inches TFT LCD HMI Touch Screen

NX3224T024
NX3224T028
Size:
2.4 inches
Weight:
0.050Kgs
Size:
2.8 inches
Weight:
0.070Kgs

$20.00

Chat Online

Nextion Generic 2.4 or 2.8 inches HMI Touch Screen

Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance
Features
2.4 inches 320 x 240 Resolution
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
RGB 65K true to life colors
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area: 36.72mm(L)×48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1 percent
5V90mA power consumption
Generic using for all Arduino or Raspberry Pi project

2.8 inches 320 x 240 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:57.6mm(L)×43.2mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1 percent
5V65mA power consumption
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
Powered directly off the Raspberry Pi, no external power supply is required
Generic using for all Arduino or Raspberry Pi project.
