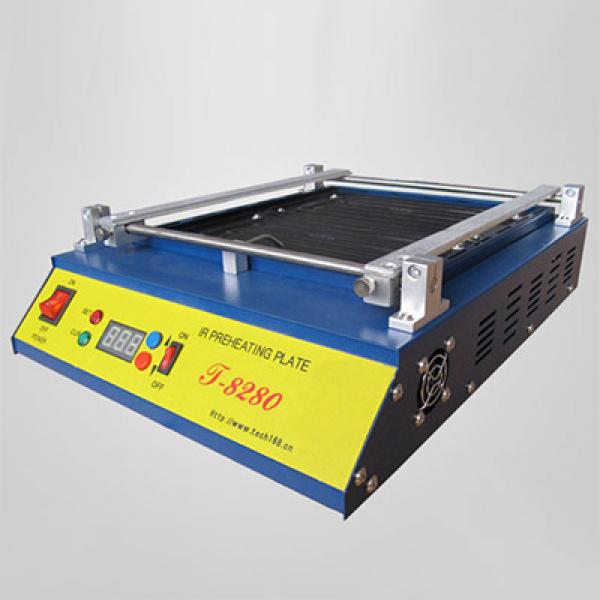

IR-preheating plate

IR-preheating plate
Heating method:Heating method: aluminum plate heating
Features:
1, the machine selected independent research and development of infrared efficient heat devices, the use of advanced PID intelligent temperature control heating technology, accurate temperature control.
2, Can be achieved on lead, lead-free PCB board components for heating, especially for BGA, SMD components of the PCB board.
3, dedicated infrared heating penetration, the device heat evenly, no hot air flow will not let the PCB on the small components of the shift to ensure the quality of welding.
3, the machine is equipped with 1500W preheat (sol) system, preheat range 280x270mm, with handheld infrared welding machine T-835 supporting the use.

Technical Parameters
Worktable size 410x316mm
Rated voltage and frequency AC220-230v / AC110V 60 / 50Hz
Machine power 1600W
Infrared preheat chassis power 1500W
Preheat Chassis Preheat Size 280x270mm
Preheat chassis temperature adjustable 0-450 ℃

Packing list
Preheating furnace body
Temperature sensor
PCB board bracket
GB power cord 1
User manual (CD) 1
