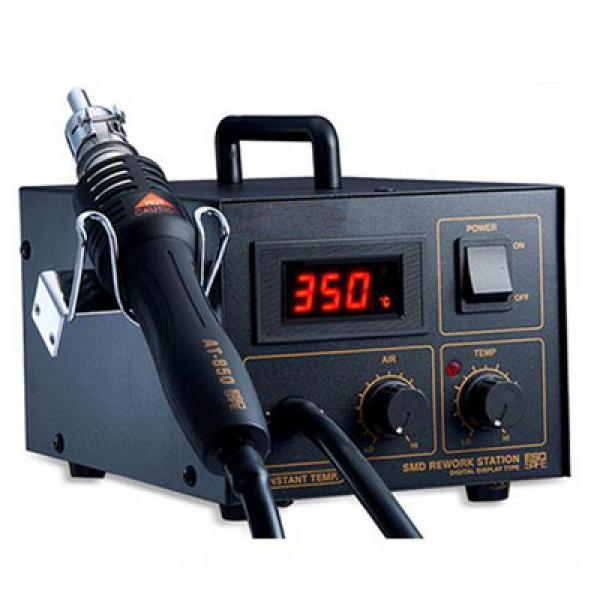

Hot Air SMD Desoldering Rework Station
Imported heating core, used in the electronics industry, anti-only cooling system, electrostatic design,
Built-in Hall sensor, turbine principle, strong wind
Advantage:
Using the sensor closed loop temperature control, heating up quickly, set temperature is convenient, the temperature is stable
Using anti-static design, to prevent damage due to static electricity and leakage PCB board
The use of imported heating wire, long service life
Imported air pump low vibration, no noise design, keep the working environment clean
Work after the delay after the air supply, the wind temperature below 100 ℃ automatically cut off the power
Suitable for most surface-mount parts Demolition of soldering can be safely demolished QFP, PLCC, SOP, BGA and other temperature-sensitive components
Hot plastic welding field, electrical maintenance, parts maintenance. Various PVB / PE / PP / PVDE etc
Plastic sheet, pipe, silent sheet of the site of welding construction, pipe used in technical training
Both sides can be fitted with a handle bracket
Technical Parameter:
Power supply voltage: AC 220V / 50HZ
Function consumption: 280 (MAX)
Air type: diaphragm dedicated pump
Air flow: 23L / MIN (max)
Temperature adjustment range: 100 ℃ -480 ℃
Display: LED digital display
Handle length (including handle line): 120CM
Noise: <40DB
Nozzle: A1130, A1170A (outer diameter 4mm / 8mm)
Heating core: imported 850D heating wire (550W) 220V
Dimensions: 224 * 126 * 110mm (L * W * H)
Net weight: 3.2kg
Packaging list:
1, Desoldering Station
2, Nozzle (4mm / 8mm)
3, Handle components
4, Manual
5, The power cord
