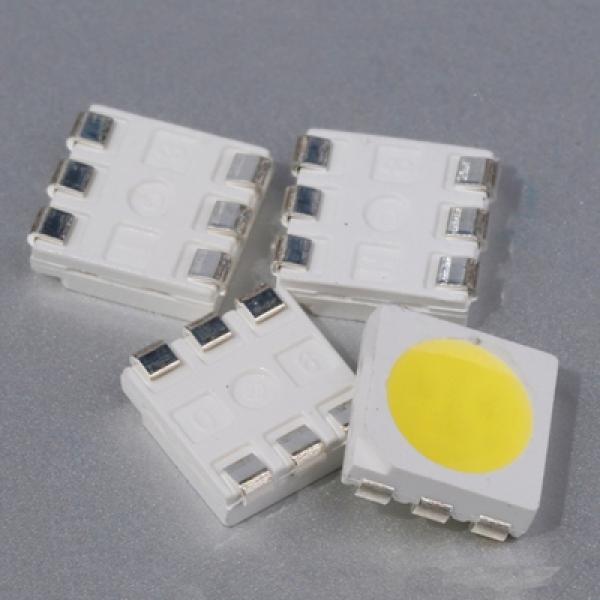

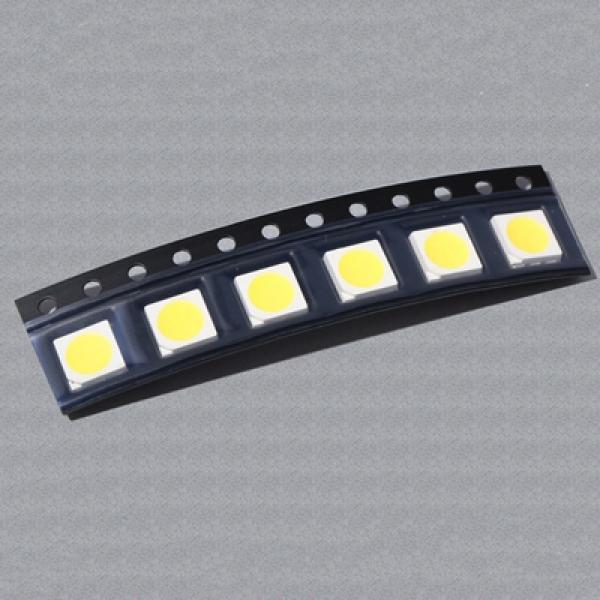

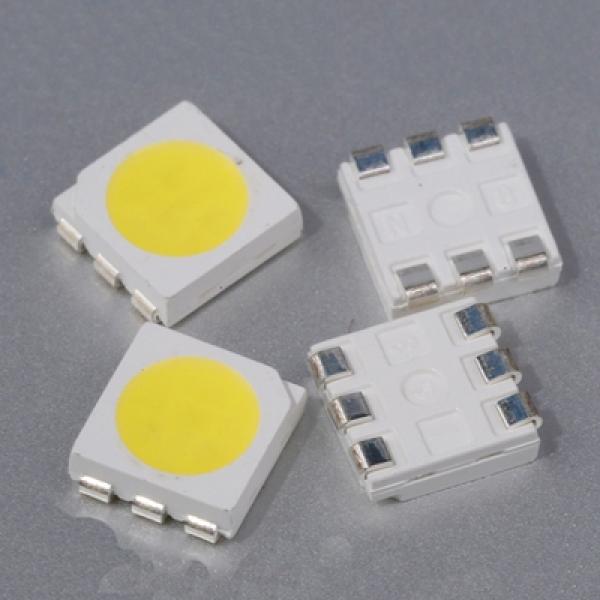

5050 Package(1.6mm thickness) 3-dice TOP LED
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:
Applied in pick and place machine, SMT surface mount technology industry.
Material:AlGaInP
Lens Type:Water clear
Dominant Wave length(Unit: nm, IF=20mA):589
Luminous Intensity(Unit：mcd,IF=20mA) 260x3
Forward Voltage (Unit:V,IF=20A)Typical2.0 Max2.4
Viewing Angle (Unit:degree)130
Welcome to download our LED chips catalog brochure to find more.
| Part Number | Color | Material | Lens Type | Dominant Wavelength | Luminous Intensity (Unit：mcd,IF=20mA) | Forward Voltage | Viewing Angle (Unit:degree) |
|||
| Typical | Max | |||||||||
| HT61-2301SURUB UBGC | Ultra Red | AlGaInP | Water clear | 624 | 220 | 2.0 | 2.4 | 130 | ||
| Ultra Green | InGaN | Water clear | 525 | 650 | 3.2 | 3.6 | ||||
| Ultra Blue | InGaN | Water clear | 468 | 220 | 3.2 | 3.6 | ||||
