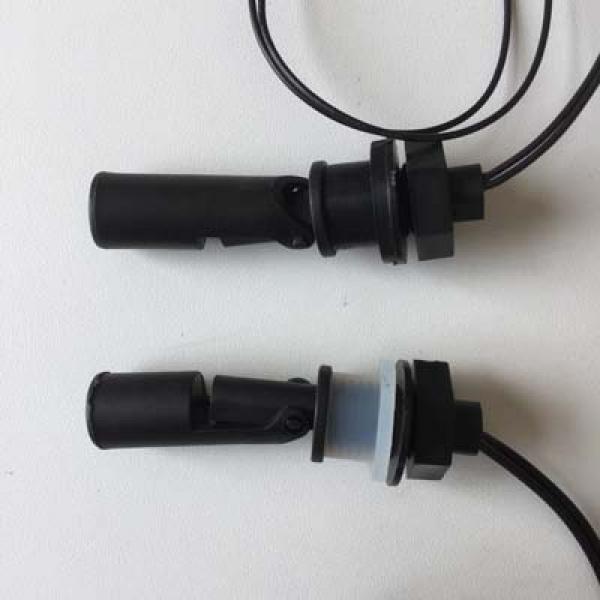

Side entry liquid level sensor
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:
Liquid Level Sensor for Amusement Machine
Mounting:Side Entry
Dimension: D 17mm, L 86mm
Material:Acetal/Polypropylene
Fitting: External Fitting
Contact Form: Form A - SPST
Contact Material: Ruthenium
Maximum Switching Volts: 250 VAC
Maximum Switching Current: 1.0
Maximum Power: 15 Watts
Housing Temperature Range ˚C: 80
Housing Material: Acetal Copolymer
Housing Colour: Black
Float Material: Foamed Polypropylene
Connection Type: 2 x 22AWG, 16/0.2mm PVC
Insulated 0.1M long
Cable Colour: Black/Black
Minimum Specific Gravity: 0.8
Operating Temperature Range ˚C: 60
Medium/ Liquid: Drinking Water, (potable water) Water
Sealing Components: EPDM
Operating Pressure: 5
Operate Mode: N/C with Horizontal
Typical Applications
Water high or low level
Un-pressurised Central Heating Systems
Fuel low level
Drinking water level
Organic Solvents
