Automatic Insertion Machine odd form component insertion machine

Odd form component automatic insertion machine

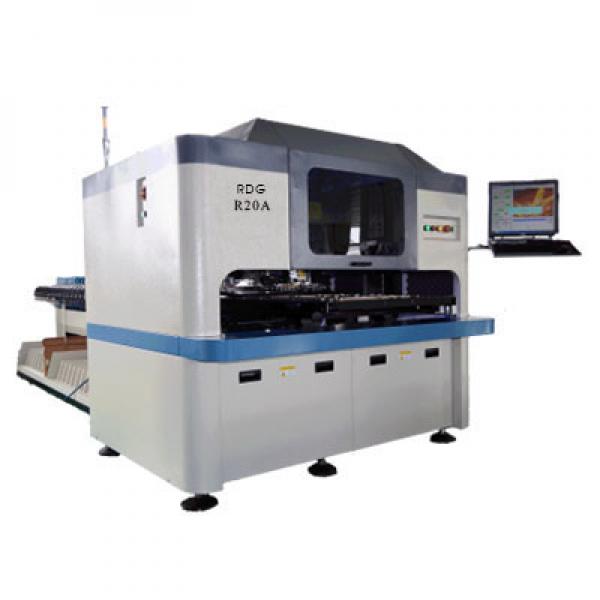

R20A Vertical Insertion Machine 20 Stations
Theoretical Speed 17,000 cph
Insertion Direction 0º- 360º, 1ºIncrement
Lead Span 2.5mm/5.0mm
Board Size Min 50mm*50mm Max 450mm*450mm
Board Thickness 0.79~2.36mm
Component Height Max 28mm
Component Diameter Max 13mm
Component Style Capacitor, Transistor, Triode, LED, Mini Switch, Resistor, Connector, Coil, Potentiometer, Fuse Block, Other Radial Style Taped Components
Cut & Clinch Length 1.2-2.2 mm (Adjustable )
Clinch Angle 10-35ºExternal Bending (Adjustable)
Component Stations 20 STD
Machine Dimension Main Body: L1700xW1450xH1700 mm
Component Station Size L1800xW1450xH1100 mm
Weight Main Body ：Approx 1800kg
Power Requirement AC220V, Single Phase, 50/60Hz, 2.0Kw
Power Protection UPS, 15 minutes duration after power cut-off
Air Pressure 0.6-0.8 Mpa
Air Consumption 0.3 M³/min
Environmental Temperature 5ºC - 25ºC
Noise Level 65 db
Clinch Module Movement AC Servo Motor （Rotation /Up,Dn ）
Component Feeding To Insertion Head Pneumatic Cylinder
Position Teaching Vision System ； Multi Fiducial
Axis Driving System AC Servo Motor
Data Input Style USB Port (Excel Format)
Control System Chinese/English Interface (Windows Platform) LCD Display
Operation Mode Auto / Semi Auto / Manual
Component Density High Density Insertion Style
Worktable Rotation Clockwise / Counter Clockwise
Board Inload Manual
Programming On-line Teaching Off-line Teaching
Loader/Unloader N/A

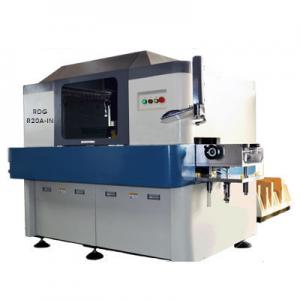

R20A-IN-20 Automatic vertical up and down board insertion machine 20 Stations
Theoretical Speed 17,000 cph
Insertion Direction 0º- 360º, 1ºIncrement
Lead Span 2.5mm/5.0mm
Board Size Min 50mm*50mm Max 400mm*250mm
Board Thickness 0.79~2.36mm
Process Height 900mm
Component Height Max 28mm
Component Diameter Max 13mm
Component Style Capacitor, Transistor, Triode, LED, Mini Switch, Resistor, Connector, Coil, Potentiometer, Fuse block, other Radial Style Taped Components
Cut & Clinch Length 1.2-2.2 mm (Adjustable )
Clinch Angle 10-35ºExternal Bending (Adjustable)
Component Stations 20 STD
Machine Dimension Main Body:L1920xW1450xH1700mm
Component Station Size L1800xW1450xH1100 mm
Weight Main Body Approx 2000kg
Power Requirement AC220V, Single Phase, 50/60Hz, 1.5Kw
Power Protection UPS, 15 minutes duration after power cut-off
Air Pressure 0.6-0.8 Mpa
Air Consumption 0.3 M³/min
Environmental Temperature 5ºC - 25ºC
Noise Level 65 db
Clinch Module Movement AC Servo Motor （Rotation /Up,Dn ）
Component Feeding To Insertion Head Pneumatic Cylinder
Position Teaching Vision System ； Multi Fiducial
Axis Driving System AC Servo Motor
Data Input Style USB Port (Excel Format)
Control System Chinese/English Interface (Windows Platform) LCD Display
Operation Mode Auto / Semi Auto / Manual
Component Density High Density Insertion Style
The plate feeds the board from left to right
Programming On-line Teaching Off-line Teaching Loader/Unloader

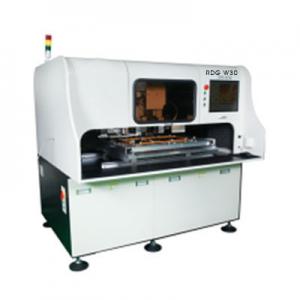

W30 All-In-One Axial Insertion Machine
Theoretical Speed 22,000 cph
Insertion Direction 4 Direction 0º/90°/180°/ 270º
Component Span 5mm ~ 20mm (5mm~23mm only for inserting Jumper)
Board Size Min 50mm*50mm Max 450mm*450mm
Process Height N/A
Board Thickness 0.79~2.36mm
Component Style Capacitor, Transistor, Diode,Resistor, Inductance,Fuse Block,Other Axial style taped components
Jumper Independent Module:Dia0.5-0.7mm Tin Plate Copper Wire
Cut & Clinch Length 1.2-2.2 mm (Adjustable )
Clinch Angle 0-35ºInternal Bending (Adjustable)
Machine Dimension Main Body: L1700xW1400xH1900 mm
Weight Main Body ：Approx 1800kg
Power Requirement AC220V, Single Phase, 50/60Hz, 1.5Kw
Power Consumption 0.95Kw
Power Protection UPS, 15 minutes duration after power cut-off
Air Pressure 0.6-0.8 Mpa
Air Consumption 0.1 M³/min
Environmental Temperature 5ºC - 25ºC
Noise Level 65 db
Position Teaching Vision System ； Multi Fiducial
Axis Driving System AC Servo Motor
Data Input Style USB Port (Excel Format)
Control System Chinese/English Interface (Windows Platform) LCD Display
Operation Mode Auto / Semi Auto / Manual
Worktable Rotation Clockwise / Counter Clockwise
Board Inload Manual
Programming On-line Teaching Off-line Teaching

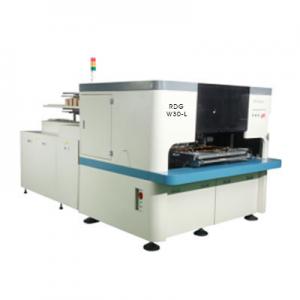

W30-L All-In-One Axial Insertion Machine
Theoretical Speed 22,000 cph
Insertion Direction 4 Direction 0º/90°/180°/ 270º
Component Span 5mm ~ 20mm
Board Size Min 50mm*50mm Max 450mm*450mm
Process Height N/A
Board Thickness 0.79~2.36mm
Component Style Capacitor, Transistor, Diode,Resistor, Inductance,Fuse Block,Other Axial style taped components
Jumper Independent Module:Dia0.5-0.7mm Tin Plate Copper Wire
Cut & Clinch Length 1.2-2.2 mm (Adjustable )
Clinch Angle 0-35ºInternal Bending (Adjustable)
Component Stations 20 STD
Machine Dimension Main Body: L1500xW1750xH1500 mm
Component Station Size L2000xW1000xH1500 mm
Weight Main Body ：Approx 1800kg
Power Requirement AC220V, Single Phase, 50/60Hz, 1.5Kw
Power Protection UPS, 15 minutes duration after power cut-off
Air Pressure 0.6-0.8 Mpa
Air Consumption 0.3 M³/min
Environmental Temperature 5ºC - 25ºC
Noise Level 60 db
Position Teaching Vision System ； Multi Fiducial
Axis Driving System AC Servo Motor
Chain Driving Dual Chain With Dual Servo Motor Drive
Data Input Style USB Port (Excel Format)
Control System Chinese/English Interface (Windows Platform) LCD Display
Operation Mode Auto / Semi Auto / Manual
Worktable Rotation Clockwise / Counter Clockwise
Board Inload Manual
Programming On-line Teaching Off-line Teaching< Loader/Unloader N/A On-line Teaching Off-line Teaching
