The Realm of Motion: Unraveling the Mechanisms of Lead Screws, Ball Screws, Reversing Screw and Beyond
In the intricate world of mechanical engineering, the precise and efficient conversion of rotary motion into linear motion is a fundamental requirement across a vast spectrum of applications. From the delicate movements of robotic arms to the powerful thrust of industrial machinery, various mechanisms have been developed to achieve this crucial transformation. Among the most prevalent and versatile are lead screws and ball screws, each with its unique characteristics and suitability for specific tasks. This exploration will delve into the principles, distinctions, and specialized variations of these linear motion devices, including reversing screws, planetary ball screws, and the closely related ball spline.
The Workhorse: Understanding the Lead Screw
The lead screw, also known as a power screw or translation screw, represents a relatively simple yet robust mechanism for converting rotary motion into linear motion. It consists of a threaded rod (the screw) and a mating nut. As the screw rotates, the nut travels along its length, or conversely, a rotating nut can drive a stationary screw linearly.
The fundamental principle behind the lead screw is the inclined plane. The helical thread wrapped around the screw shaft acts as a continuous ramp. When torque is applied to the screw (or nut), this inclined plane forces the nut (or screw) to move axially. The lead of the screw, which is the axial distance the nut advances for one complete revolution of the screw, is a crucial parameter determining the speed and force characteristics of the system. A larger lead results in faster linear movement for a given rotational speed but requires less input torque for a given axial load. Conversely, a smaller lead provides greater mechanical advantage (higher force output for a given torque) but results in slower linear motion.
Lead screws are favored in applications where cost-effectiveness and simplicity are paramount. They are commonly found in machine tools for feed mechanisms, linear actuators, vices, and various positioning systems. However, due to the direct sliding contact between the screw and the nut, friction is a significant factor. This friction leads to wear, reduced efficiency, and the potential for backlash (play between the screw and nut), which can impact positional accuracy. Lubrication is essential to minimize friction and wear in lead screw systems.
The Efficiency Champion: Exploring the Ball Screw

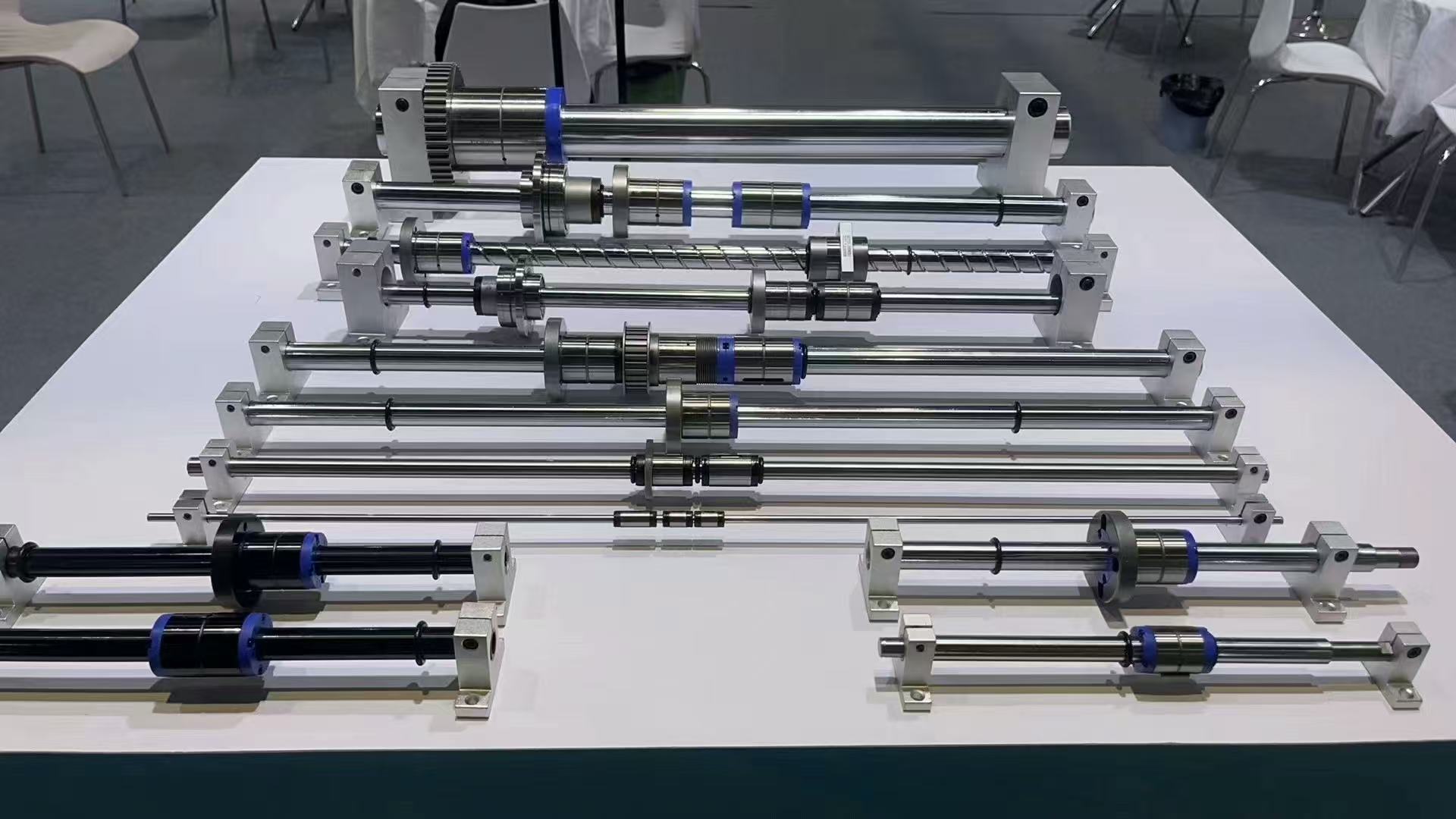

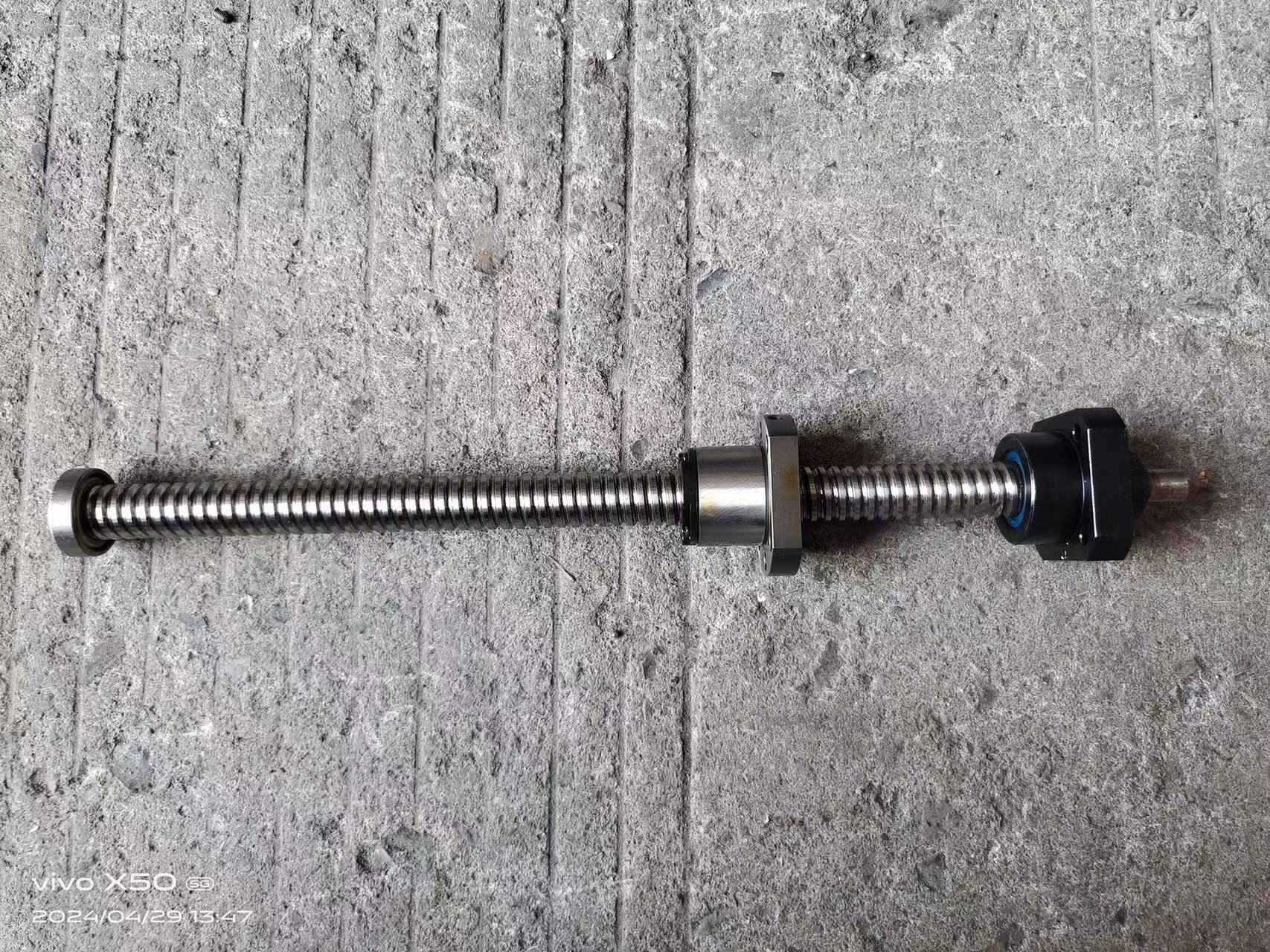

The ball screw represents a significant advancement over the traditional lead screw in terms of efficiency and precision. Instead of sliding friction, the ball screw utilizes recirculating ball bearings between the screw and the nut. These hardened steel balls roll in the helical grooves of the screw and nut, providing a smooth, low-friction interface.
As the screw rotates, the balls travel along the grooves in the nut, causing the nut to move linearly. Once the balls reach the end of the nut's travel, they are guided by a recirculation mechanism (internal or external) back to the starting point, creating a continuous rolling motion.
The reduced friction in ball screws translates to several key advantages:
High Efficiency: Ball screws typically achieve efficiencies of 90% or higher, significantly outperforming lead screws. This means less energy is required to achieve the same linear force and less heat is generated.
High Accuracy and Repeatability: The rolling contact minimizes backlash, resulting in precise and repeatable linear motion, crucial for applications like CNC machines, robotics, and precision positioning stages.
Long Life: The reduced friction and wear contribute to a longer lifespan compared to lead screws, especially in high-duty cycle applications.
High Load Capacity: Ball screws can handle substantial axial loads due to the rolling contact and the large contact area provided by the numerous balls.
High Speed Capability: The low friction allows for higher rotational speeds and thus faster linear travel.
However, ball screws are generally more complex and expensive than lead screws due to the precision manufacturing required for the screw, nut, and ball recirculation system. They also require lubrication to ensure smooth ball rolling and prevent wear.
Specialized Variations: Tailoring Motion for Specific Needs
Beyond the fundamental lead screw and ball screw, several specialized variations cater to unique operational requirements:

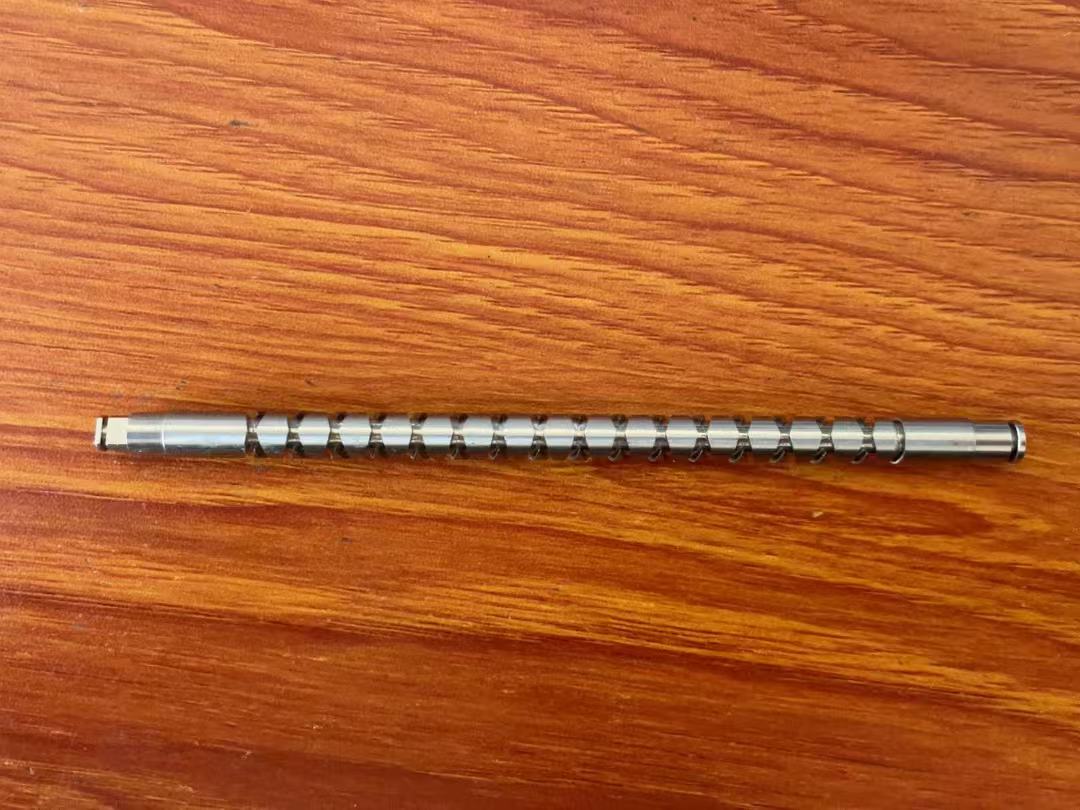

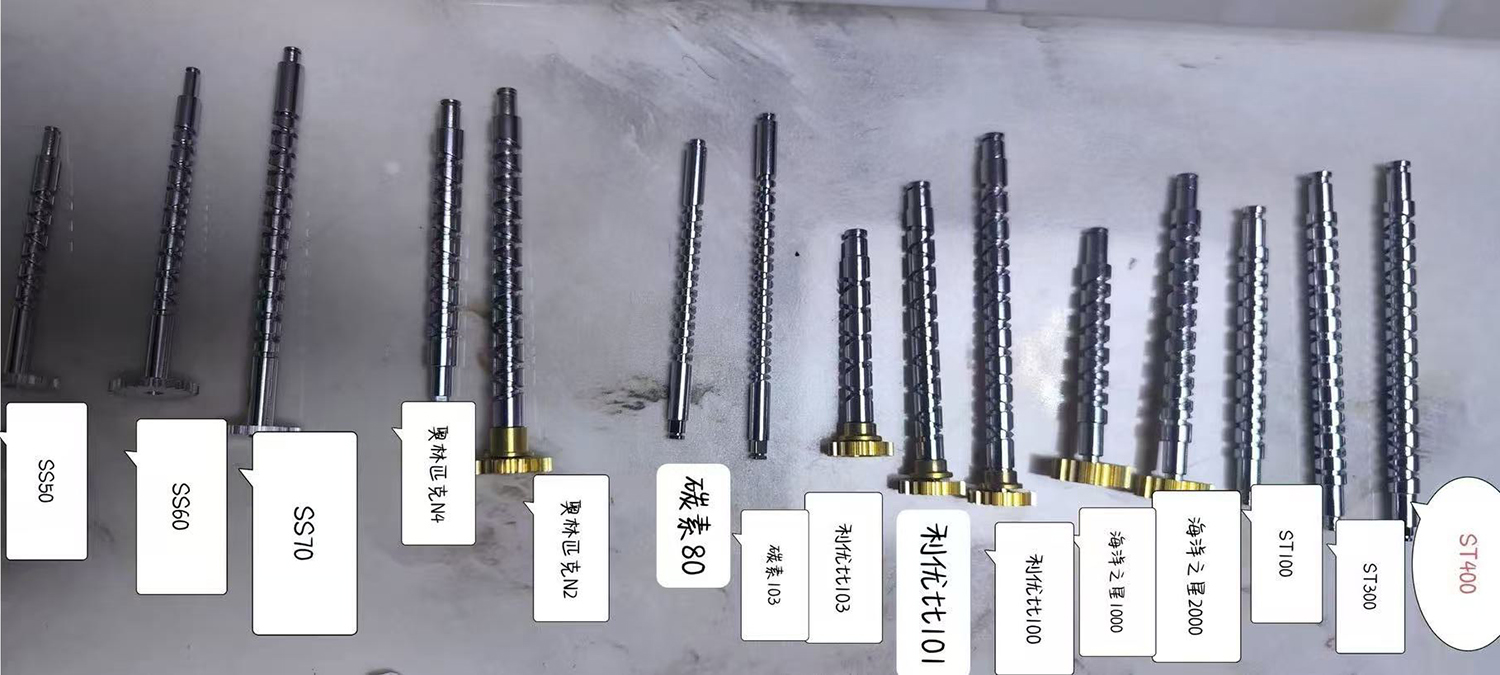

Reversing Screw: A reversing screw, also known as a double-lead screw or a differential screw, features two sets of opposing threads on a single shaft. These threads engage with two separate nuts. By rotating the screw, the two nuts move in opposite directions. This mechanism is often used in applications requiring synchronized or opposing linear motion, such as clamping devices or differential actuators. The relative speed and direction of the nuts can be precisely controlled by the screw's rotation.

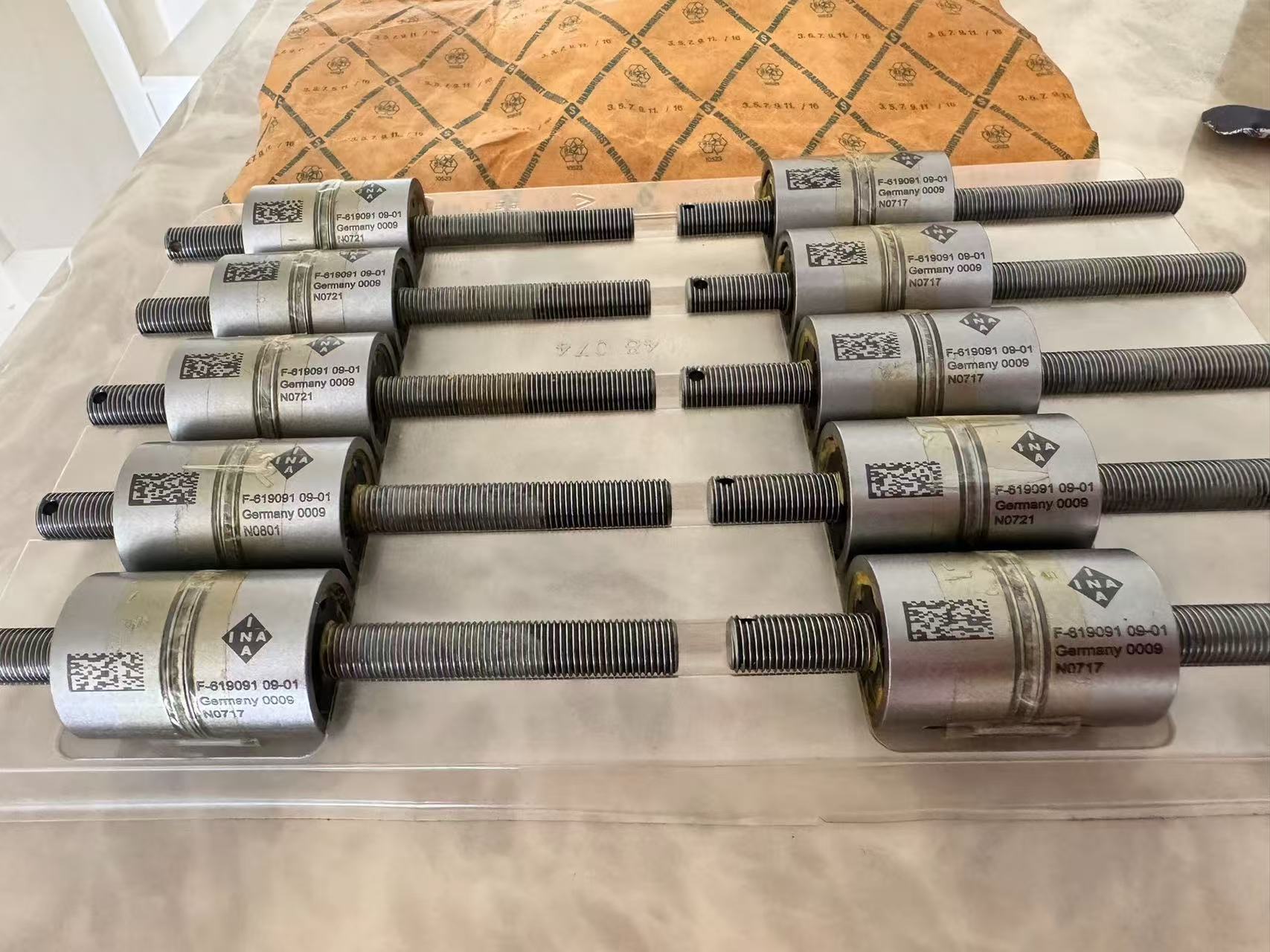

Planetary Ball Screw: The planetary ball screw takes the principle of the ball screw a step further by incorporating multiple orbiting ball nuts around a central screw shaft. These nuts are connected to a carrier or a planetary gear system.
This design offers several advantages, including:
Higher Load Capacity: Distributing the load across multiple ball nuts increases the overall load-carrying capacity.
Compact Design: For a given load capacity, planetary ball screws can be more compact than traditional ball screws.
Increased Stiffness: The multiple contact points provide higher stiffness and reduced deflection under load.
Smooth and Precise Motion: The multiple contact points contribute to smoother and more precise linear motion.
Planetary ball screws are often found in demanding applications like aerospace actuators, heavy-duty industrial machinery, and high-performance robotic systems.
Ball Spline: While primarily designed for transmitting torque and providing linear motion simultaneously, the ball spline shares similarities with ball screws in its use of recirculating ball bearings.
A ball spline consists of a splined shaft with longitudinal grooves and a nut (or sleeve) containing ball bearings that ride within these grooves. The balls allow for smooth linear movement along the shaft while also transmitting rotational torque between the shaft and the nut.
Unlike ball screws, the primary function of a ball spline is not necessarily to convert rotary motion into linear motion in the same way. Instead, it facilitates linear movement under torque, preventing rotation of the moving component relative to the shaft. Ball splines are crucial in applications like robotic joints, automated assembly systems, and machine tools where both linear and rotary motion need to be coordinated.
Conclusion: Choosing the Right Mechanism for the Task
The selection of the appropriate linear motion mechanism – whether a lead screw, ball screw, or one of its specialized variations – hinges on a careful consideration of the application's specific requirements. Factors such as load capacity, accuracy, speed, efficiency, duty cycle, cost, and complexity all play a crucial role in the decision-making process.
Lead screws offer a cost-effective solution for less demanding applications where high precision and efficiency are not paramount. Ball screws excel in scenarios requiring high accuracy, efficiency, and long life, justifying their higher cost in many precision machinery applications. Reversing screws provide unique capabilities for synchronized or opposing linear motion. Planetary ball screws offer enhanced performance in high-load and high-stiffness applications. Finally, ball splines address the need for simultaneous linear movement and torque transmission.
Understanding the fundamental principles and the distinct characteristics of each of these linear motion devices empowers engineers and designers to select the optimal mechanism, ensuring efficient, reliable, and precise motion control in various technological advancements. The continued evolution and refinement of these screw-based technologies will undoubtedly continue to drive innovation across numerous industries.
