384mm, 387mm, 390mm, 393mm or 396mm 3M endless belt

384mm, 387mm, 390mm, 393mm or 396mm 3M endless belt

384-HTD3M-6

387-HTD3M-6

390-HTD3M-6

393-HTD3M-6

396-HTD3M-6

384-HTD3M-9

387-HTD3M-9

390-HTD3M-9

393-HTD3M-9

396-HTD3M-9

Size:: 384-3M-6
Weight:: 0.008Kgs

Size:: 387-3M-6
Weight:: 0.008Kgs

Size:: 390-3M-6
Weight:: 0.008Kgs

Size:: 393-3M-6
Weight:: 0.008Kgs

Size:: 396-3M-6
Weight:: 0.008Kgs

Size:: 384-3M-9
Weight:: 0.015Kgs

Size:: 387-3M-9
Weight:: 0.015Kgs

Size:: 390-3M-9
Weight:: 0.015Kgs

Size:: 393-3M-9
Weight:: 0.015Kgs

Size:: 396-3M-9
Weight:: 0.015Kgs

$0.75

3M or HTD3M endless belt 6mm and 9mm wide
384-3M-6 is 6mm wide 384mm 3mm pitch 3M endless belt
384-3M-9 is 9mm wide 384mm 3mm pitch 3M endless belt
Please choose the right width of 3M belt you need when ordering.

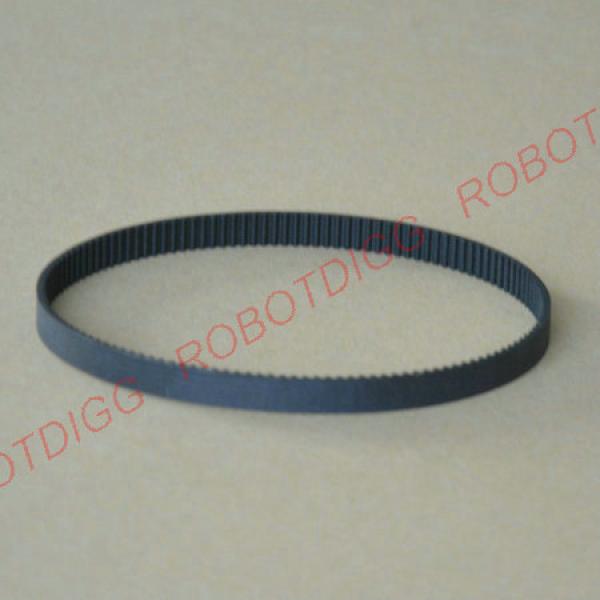

HTD3M Belt, Closed-loop, 384mm length, 128 teeth, 6mm or 9mm width

Tooth Profile: HTD3M Round Profile
Material: Neoprene Rubber with Fiberglass Reinforced
Color: Black
Pitch: 3mm
Tooth Number: 128
Length: 384mm
Width: 6mm or 9mm
Type: Closed-loop
Quantity: 1 piece

HTD3M Belt, Endless, 387mm length, 129 teeth, 6mm or 9mm width

Tooth Number: 129
Length: 387mm

HTD3M Belt, Endless, 390mm length, 130 teeth, 6mm or 9mm width

Tooth Number: 130
Length: 390mm

HTD3M Belt, Endless, 393mm length, 131 teeth, 6mm or 9mm width

Tooth Number: 131
Length: 393mm

HTD3M Belt, Endless, 396mm length, 132 teeth, 6mm or 9mm width

Tooth Number: 132
Length: 396mm

HTD 3M Closed-loop Belt Price Ref. List
Length-3M-width	Price (USD)	Length-3M-width	Price (USD)	Length-3M-width	Price (USD)
120-3M-6	0.35	252-3M-9	0.75	408-3M-9	1.10
126-3M-6	0.35	255-3M-9	0.75	411-3M-9	1.14
129-3M-6	0.35	258-3M-9	0.75	414-3M-9	1.14
135-3M-6	0.35	267-3M-9	0.80	417-3M-9	1.14
138-3M-6	0.35	270-3M-9	0.80	420-3M-9	1.14
141-3M-6	0.35	273-3M-9	0.80	444-3M-9	1.20
144-3M-6	0.35	276-3M-9	0.80	450-3M-9	1.20
147-3M-6	0.35	279-3M-9	0.80	462-3M-9	1.20
150-3M-6	0.35	285-3M-9	0.80	468-3M-9	1.20
153-3M-6	0.40	288-3M-9	0.80	471-3M-9	1.20
156-3M-6	0.40	291-3M-9	0.80	474-3M-9	1.20
159-3M-6	0.40	294-3M-9	0.80	480-3M-9	1.29
162-3M-6	0.40	297-3M-9	0.80	486-3M-9	1.29
165-3M-6	0.40	300-3M-9	0.85	489-3M-9	1.29
168-3M-6	0.40	309-3M-9	0.85	492-3M-9	1.29
171-3M-6	0.40	315-3M-9	0.85	495-3M-9	1.29
174-3M-6	0.40	318-3M-9	0.85	510-3M-9	1.35
177-3M-6	0.40	321-3M-9	2.60	525-3M-9	1.38
180-3M-6	0.45	324-3M-9	0.90	552-3M-9	1.45
183-3M-6	0.45	327-3M-9	0.90	564-3M-9	1.48
186-3M-6	0.45	330-3M-9	0.90	669-3M-9	1.77
189-3M-6	0.45	333-3M-9	0.90	672-3M-9	1.77
192-3M-6	0.45	336-3M-9	0.90	675-3M-9	1.77
195-3M-6	0.45	339-3M-9	0.90	1590-3M-9	3.87
198-3M-6	0.45	342-3M-9	0.95
201-3M-6	0.45	345-3M-9	0.95
204-3M-6	0.50	348-3M-9	0.95
207-3M-6	0.50	351-3M-9	0.95
210-3M-6	0.50	354-3M-9	0.95
213-3M-6	0.50	363-3M-9	1.00
216-3M-6	0.50	366-3M-9	1.00
219-3M-6	0.50	369-3M-9	1.00
222-3M-6	0.50	372-3M-9	1.00
225-3M-6	0.50	375-3M-9	1.00
228-3M-6	0.50	384-3M-9	1.10
231-3M-6	0.50	387-3M-9	1.10
234-3M-6	0.50	390-3M-9	1.10
237-3M-6	0.50	393-3M-9	1.10
240-3M-6	0.55	396-3M-9	1.10
243-3M-6	0.55	399-3M-9	1.10
246-3M-6	0.55	402-3M-9	1.10
249-3M-6	0.55	405-3M-9	1.10
Further more,welcome to write us for quote
